Product description

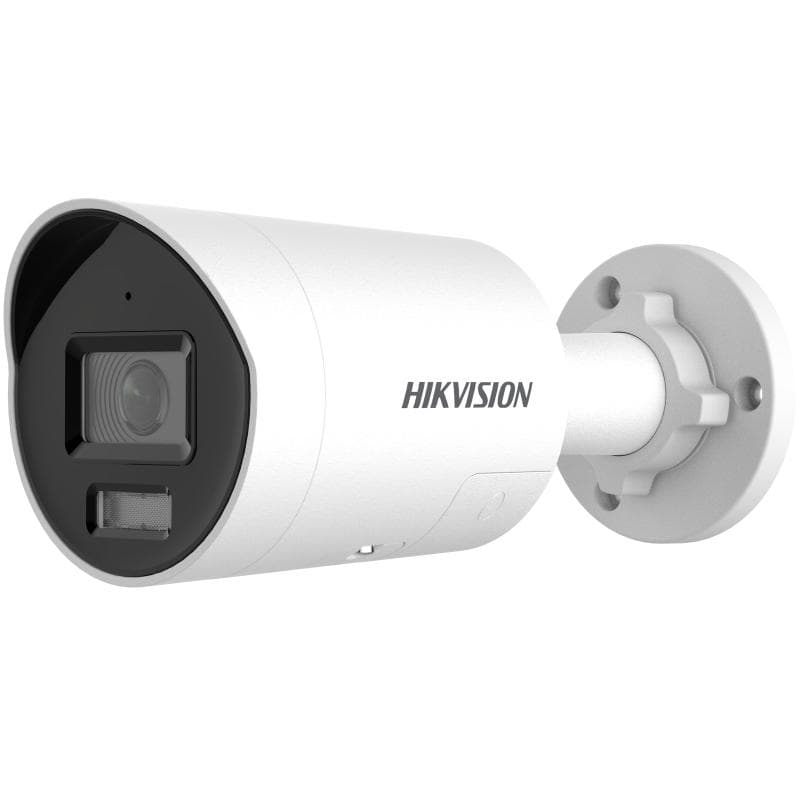

The Hikvision DS-2CD2026G2-IU/SL is a 2 MP fixed mini bullet network camera for perimeter and entrance CCTV coverage where audio warning, strobe deterrence and remote monitoring are useful. It uses a 1/2.8-inch progressive scan CMOS sensor with 1920 x 1080 resolution, 120 dB WDR and IR support up to 40 m. The camera supports H.265/H.264 compression, built-in microphone, built-in speaker, audible warning, flashing light, microSD storage up to 256 GB and Hik-Connect/iVMS/Hik-Central client access. Smart event functions include line crossing, intrusion, region entrance, region exiting, scene change detection and face capture, with human and vehicle target filtering for supported events. Its metal IP67 body and PoE/12 VDC power options make it practical for outdoor CCTV points that need visible deterrence plus useful playback.
Specifications
- Model
- DS-2CD2026G2-IU/SL
- Product Type
- 2 MP Fixed Mini Bullet Network Camera with Strobe Light and Audible Warning
- Image Sensor
- 1/2.8-inch Progressive Scan CMOS
- Max Resolution
- 1920 x 1080
- Minimum Illumination
- Color: 0.002 Lux @ F1.4, AGC ON; B/W: 0 Lux with IR
- Shutter Time
- 1/3 s to 1/100,000 s
- Day Night
- IR cut filter
- Angle Adjustment
- Pan: 0 deg to 360 deg; tilt: 0 deg to 90 deg; rotate: 0 deg to 360 deg
- Lens Options
- Fixed focal lens, 2.8 mm, 4 mm and 6 mm optional
- Field Of View
- 2.8 mm: horizontal 107 deg, vertical 57 deg, diagonal 129 deg; 4 mm: horizontal 86 deg, vertical 47 deg, diagonal 102 deg; 6 mm: horizontal 55 deg, vertical 29 deg, diagonal 65 deg
- Lens Mount
- M12
- Iris And Aperture
- Fixed iris, F1.4 aperture
- Depth Of Field
- 2.8 mm: 1.1 m to infinity; 4 mm: 1.2 m to infinity; 6 mm: 3 m to infinity
- DORI
- 2.8 mm: D 44 m, O 17 m, R 9 m, I 4 m; 4 mm: D 53 m, O 21 m, R 11 m, I 5 m; 6 mm: D 87 m, O 34 m, R 17 m, I 9 m
- Supplement Light
- IR, up to 40 m, smart supplement light, 850 nm wavelength
- Main Stream
- 50 Hz: 25 fps at 1920 x 1080 or 1280 x 720; 60 Hz: 30 fps at 1920 x 1080 or 1280 x 720
- Sub Stream
- 50 Hz: 25 fps at 640 x 480 or 640 x 360; 60 Hz: 30 fps at 640 x 480 or 640 x 360
- Third Stream
- 10 fps at 1920 x 1080, 1280 x 720, 640 x 480 or 640 x 360 under certain settings
- Video Compression
- Main stream: H.265, H.264, H.264+, H.265+; sub-stream: H.265, H.264, MJPEG; third stream: H.265, H.264
- Video Bit Rate
- 32 Kbps to 8 Mbps
- Bit Rate Control
- CBR, VBR
- SVC
- H.264 and H.265 encoding
- ROI
- 1 fixed region for main stream and sub-stream
- Audio Type
- Mono sound
- Audio Compression
- G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
- Audio Bit Rate
- 64 Kbps G.711; 16 Kbps G.722.1; 16 Kbps G.726; 32 to 192 Kbps MP2L2; 8 to 320 Kbps MP3; 16 to 64 Kbps AAC-LC
- Audio Sampling Rate
- 8 kHz, 16 kHz, 32 kHz, 44.1 kHz and 48 kHz
- Environment Noise Filtering
- Yes
- Wide Dynamic Range
- 120 dB
- SNR
- >= 52 dB
- Image Enhancement
- BLC, HLC, 3D DNR
- Image Settings
- Rotate mode, saturation, brightness, contrast, sharpness, gain and white balance adjustable by client software or web browser
- Privacy Mask
- Yes
- Network Protocols
- TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE and SNMP
- API
- Open Network Video Interface profiles S, G and T; ISAPI; SDK; ISUP
- Simultaneous Live View
- Up to 6 channels
- Users
- Up to 32 users with administrator, operator and user levels
- Security
- Password protection, HTTPS encryption, 802.1X authentication, watermark, IP address filter, HTTP/HTTPS authentication, RTP/RTSP over HTTPS, security audit log, TLS 1.3 and host authentication
- Network Storage
- NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), memory card encryption and health detection with supported Hikvision memory cards
- Client Software
- iVMS-4200, Hik-Connect, Hik-Central
- Browser Support
- IE 10/11 with plug-in live view; Chrome 57.0+ and Firefox 52.0+ plug-in free live view
- Ethernet
- 1 RJ45 10M/100M self-adaptive Ethernet port
- On Board Storage
- Built-in microSD card slot, up to 256 GB
- Built In Microphone
- Yes
- Built In Speaker
- Max. power consumption 1.5 W; max. sound pressure level 95 dB at 10 cm
- Reset Key
- Yes
- Basic Events
- Motion detection with specified target types, video tampering alarm and exception
- Smart Events
- Line crossing, intrusion, region entrance, region exiting and scene change detection with specified human and vehicle target types
- Linkage
- Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning and strobe light
- Deep Learning Functions
- Face capture
- Power
- 12 VDC +/-25%, max. 6.5 W; PoE IEEE 802.3af Class 3, 36 V to 57 V, max. 8 W
- Material
- Metal
- Dimensions
- Diameter 74.4 mm x 179.2 mm
- Weight
- Approx. 510 g; approx. 745 g with package
- Operating Conditions
- -30 C to 60 C, humidity 95% or less non-condensing
- General Functions
- Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email and pixel counter
- Flashing Light
- Yes
- Protection
- IP67 water and dust resistance
- Approvals
- FCC, CE-EMC, KC, UL, CB, CE-LVD, BIS, LOA, CE-RoHS, WEEE and REACH
