What a 4K CCTV Camera Delivers
A 4k cctv camera captures video at a resolution of about 3840 by 2160 pixels, commonly labelled as 8MP in the security industry. That pixel count is the core reason buyers consider the upgrade: the same scene recorded by a 2MP camera holds roughly four times more visual information. In practical terms, a single 4K unit can cover a wider area while still allowing the recorded image to be digitally enlarged during playback without turning into a blur.
The higher detail level changes how a surveillance system is planned. Instead of installing several lower-resolution cameras to cover one car park or entrance, a 4k cctv camera can often monitor the same zone with fewer units. This reduces the number of cable runs and network switch ports needed, although each camera produces a much larger video stream that the recorder must handle.
Why Choose a 4K CCTV Camera
The main benefit of a 4k cctv camera is evident after an incident, not during live viewing. When police or management need to identify a suspect, the extra pixels allow a small section of the frame, such as a face or a vehicle registration plate, to be magnified while keeping enough detail to be useful. Lower-resolution footage often fails at this exact point.
For Malaysian properties, the upgrade makes sense in specific situations. A house with a long driveway, a shop with a wide frontage, or an office car park all benefit from the wider coverage per camera. The trade-off is that 4K video demands more from the whole system: the recorder must support the higher resolution, the hard drive fills faster, and the network cabling needs to be capable of carrying the data.
The decision is not purely about image quality. A 4k cctv camera with a narrow lens pointed at a close range will not outperform a well-placed 2MP camera with a wider field of view. Placement and lens selection still matter more than raw resolution.
Key Features to Compare in a 4K CCTV Camera
Selecting a 4k cctv camera involves more than checking the megapixel count. The following features determine whether the camera performs well in a real Malaysian setting:
- **Sensor and lens size**: A larger sensor gathers more light, which improves low-light performance. The lens focal length determines the field of view; a 2.8mm lens suits a wide area, while a 6mm lens gives a narrower, more zoomed view.
- **Night vision type**: Standard infrared produces black-and-white images at night. Colour night vision, such as Hikvision's ColorVu range, uses built-in lighting to keep the image in full colour after dark.
- **Compression format**: Cameras using H.265 compression produce smaller files than older H.264 models, which reduces the storage space needed on the recorder.
- **Smart detection**: Person and vehicle detection filters out false alerts from moving trees or passing animals, making recorded events easier to search.
- **Power and data connection**: Power over Ethernet (PoE) cameras receive both power and network data through a single cable, simplifying installation compared to cameras needing separate power lines.
The lighting condition at the installation site is a deciding factor for colour night vision cameras. Eyonic recommends checking the actual lighting environment before confirming the placement of ColorVu-style cameras, because the built-in white light performs differently depending on how much ambient light is already present.

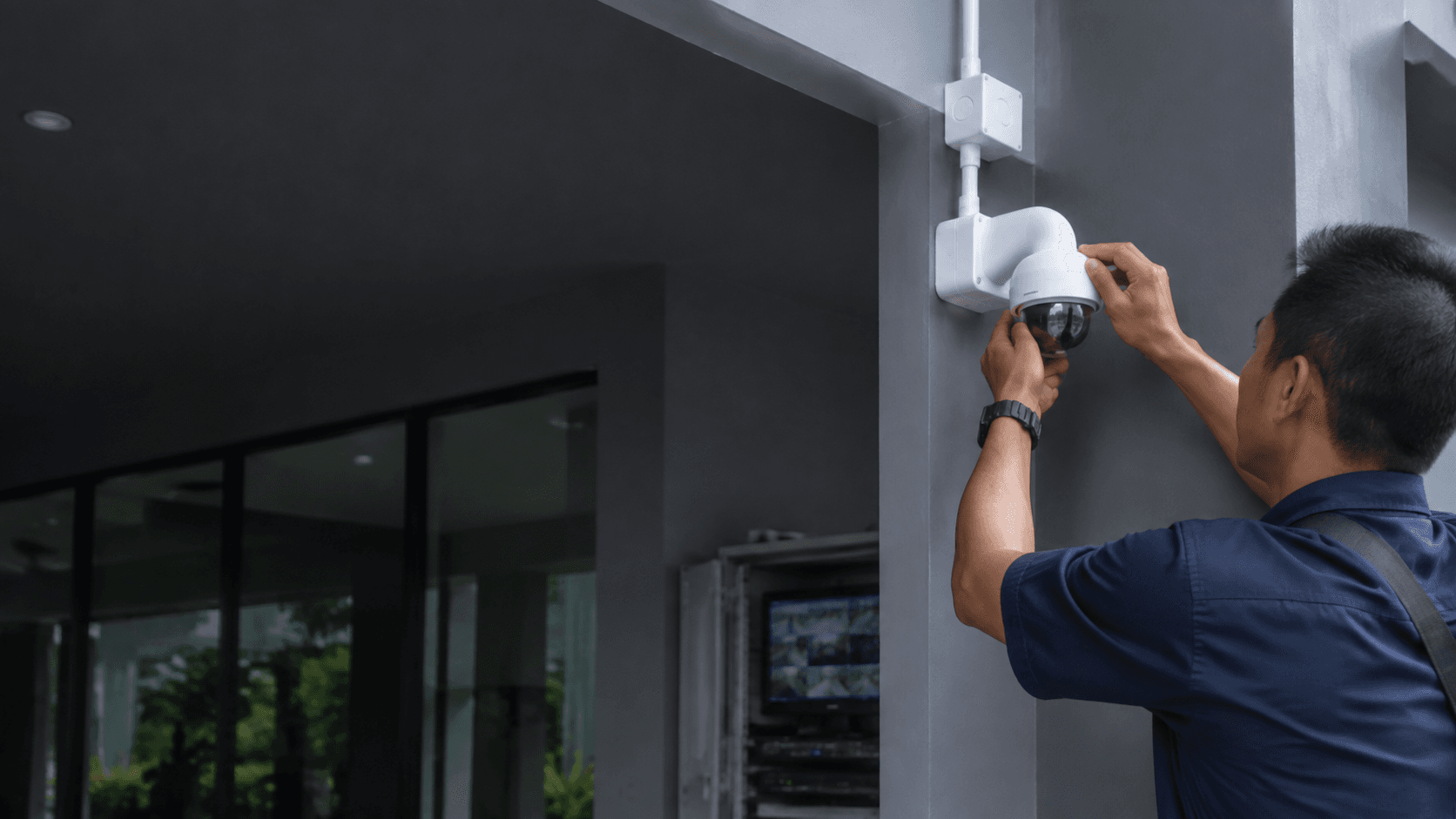

Installation Considerations for 4K CCTV Cameras
Installing a 4k cctv camera requires attention to the network and storage infrastructure, not just the camera itself. The video stream from a 4K camera at full frame rate can exceed the bandwidth of older Wi-Fi connections, so a wired network is usually the reliable choice. Eyonic's installation process for CCTV systems in Sarawak follows a sequence that starts with a site survey, moves to a system proposal, then installation, and finishes with a handover.
The site survey is the step where most problems are avoided. During this visit, the installer checks the actual lighting, the distance between proposed camera points, and the path for network cabling. A camera mounted too far from the recorder may need a higher-grade cable, and a location with strong backlighting may require a camera with wide dynamic range to avoid silhouetting.
Storage planning is another practical constraint. A 4k cctv camera recording continuously generates a large amount of data each day. The recorder's hard drive capacity must match the desired retention period, and the compression format affects how many days of footage can be stored. For a business that needs 30 days of archive, the storage requirement is significantly higher than for a home user who only reviews footage after an event.
4K CCTV Camera Costs and Packages in Malaysia
Pricing for a 4k cctv camera system in Malaysia depends on the number of cameras, the recorder channels, the hard drive capacity, and the installation work involved. Eyonic offers a Hikvision CCTV package at RM 1599, which serves as a reference point for a complete starter system rather than a single camera price.
For larger premises, the budget scales with the scope of work. Eyonic's project for the Kuching Immigration Office, which focused on arrival flow, staff areas, visitor movement, and dependable daily operation, carried an approximate budget of RM 12,000 to RM 28,000. A separate office project for KTA Sarawak Sdn Bhd, covering staff movement, visitor handling, tidy cabling, and daily site control, fell in the RM 8,000 to RM 18,000 range.
These figures show that the total cost is driven by site complexity and the number of coverage points, not just the camera resolution. A single 4k cctv camera may cost more than a 2MP unit, but if it replaces two lower-resolution cameras, the overall system cost can be similar.
Frequently Asked Questions About 4K CCTV Cameras
**Is 8MP the same as 4K?** Yes, in the CCTV industry, 8MP and 4K refer to the same resolution of approximately 3840 by 2160 pixels. The terms are used interchangeably in product listings and specifications.
**How much storage does a 4K camera need?** A 4k cctv camera recording continuously uses roughly double the storage of a 2MP camera over the same period. The exact figure depends on the compression format, frame rate, and how much motion occurs in the scene. A camera with H.265 compression stores more footage on the same hard drive than an H.264 model.
**Can a 4K camera work with an existing recorder?** The recorder must support the camera's resolution and compression format. An older recorder designed for 2MP cameras will not accept a 4K stream, so the NVR often needs to be upgraded at the same time as the cameras.
**Is 4K worth it for a small shop?** A 4k cctv camera is worth the cost when the extra detail solves a real problem, such as reading a number plate at the entrance or identifying a face across a counter. For a small room where the camera is close to the action, a lower-resolution camera may be sufficient.
**Does 4K work well at night?** Night performance depends on the camera's sensor and lighting technology, not the resolution alone. A 4K camera with a small sensor can struggle in low light, while a model with a larger sensor or colour night vision will produce a clearer image. Checking the actual lighting at the site before installation is the practical way to avoid disappointment.
