Eight cameras is a count, not a layout. The number only becomes useful once someone decides which views matter, how many recorder channels those views need, and where cable can actually run. That is why two properties with the same camera count can end up with very different systems.
Eyonic Sdn Bhd plans, supplies and installs CCTV for homes, offices, shops and industrial sites in Sarawak, covering camera placement, recording and remote viewing. The company also completed a project for the Kuching Immigration Office, where the work centred on arrival flow, staff areas, visitor movement and dependable daily operation.
8 camera cctv system: what eight cameras and one recorder actually cover
Eight cameras give a property eight separate views feeding one recorder. The recorder is the box that stores footage and serves it to a phone, monitor or computer, so the camera count and the channel count are two different numbers that have to be matched.
Coverage is decided by view, not by area. A camera pointed at a gate records the gate. A camera pointed along a corridor records the corridor. Eight cameras therefore cover eight chosen views, and the quality of the result depends on whether those eight views were chosen well.
Three things usually decide whether eight is the right number:
- Site survey — Eyonic reviews the property, the entry and exit points, the working areas and the existing cabling before proposing anything.
- System proposal — the survey findings become a written arrangement of camera positions, recorder channels and recording setup.

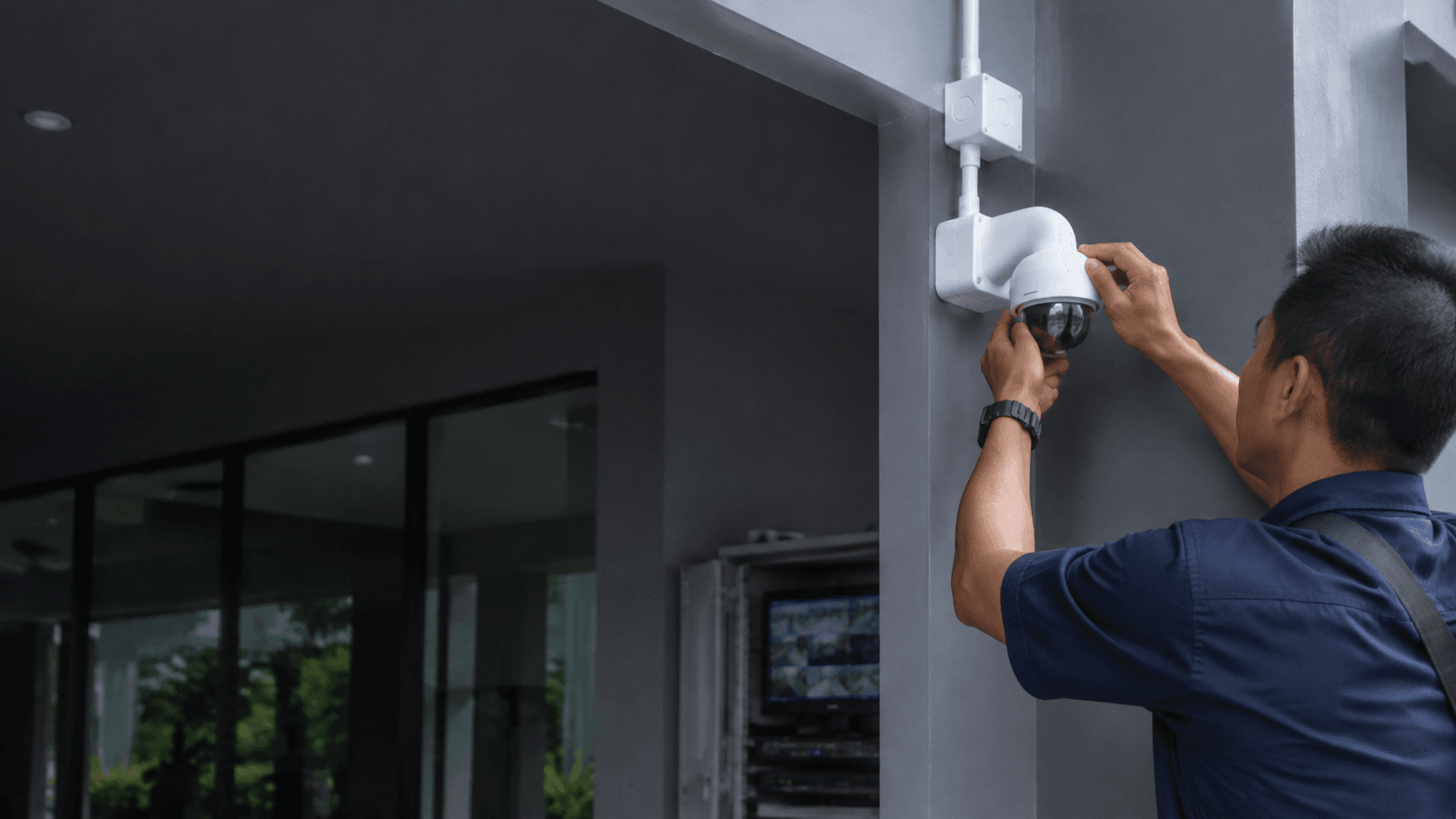

- Installation — cameras are mounted, cable is run, and the recorder is configured for recording and remote viewing.
- Handover — the working system is demonstrated, mobile viewing is set up, and the user is shown how to operate it.
That sequence is the same whether the property is a terrace house in Kuching or a shop lot with a back entrance. What changes is how many of the eight views are spent on each zone.
How eight cameras divide across entry, work, and visitor areas
Most properties have three kinds of space, and eight cameras are usually split across them rather than spread evenly.
Entry points come first because they carry the most useful record. A main gate, a pedestrian door and a rear access point each need their own view, since one camera covering two entrances usually captures neither clearly.
Work areas come second. In an office or shop, the counter, the stock area and the staff entrance are the positions that answer the most questions later. The Kuching Immigration Office project is an example of this thinking: arrival flow, staff areas and visitor movement were treated as separate concerns rather than one general view.
Visitor and circulation areas come third. A waiting area, a corridor or a car park edge may only need one camera each, and those are often the positions that get dropped when the count is tight.
A practical check is to list every position that would need its own view, then count the list. If the list runs past eight, the choice is either to accept fewer views or to move to a recorder with more channels.
Where eight cameras stop being enough
Eight cameras stop being enough when a property has more than eight genuinely separate views, or when one camera is expected to cover two areas that need different angles. Adding a camera later is possible only if the recorder has a free channel, which is why the channel count matters as much as the camera count.
Recorder channels, storage, and room to add a camera later
A recorder with eight channels accepts eight cameras. A recorder with sixteen channels accepts eight cameras today and eight more later, which is the usual reason to choose a larger recorder than the current camera count requires.
Storage is the other half of the recorder decision. Footage is written to a hard disk inside the recorder, and how long that footage lasts depends on how many cameras are recording, what resolution they record at, and whether recording runs continuously or only on movement. Those settings are chosen during configuration, not guessed in advance.
Two constraints are worth stating plainly. First, no verified specification exists here for resolution, lens, storage capacity or recorder model in an eight-camera configuration, so those details belong in the written proposal rather than in a general article. Second, the documented Eyonic package is a Hikvision CCTV package at RM 1,599 covering camera supply and setup, basic recording configuration and mobile viewing handover, and its camera count is not stated. An eight-camera requirement should therefore be confirmed against a proposal rather than assumed from that package.
Expansion also depends on cabling. If cable is run only to the eight positions in use, a ninth camera needs a new run. Leaving a spare route to a likely future position costs little during installation and saves disruption later.
Lighting and placement checks before any camera position is confirmed
Placement is confirmed on site, not on a plan. Eyonic recommends checking actual lighting conditions before confirming placement for ColorVu-style cameras, because a position that looks correct on a drawing can face a light source, a reflective surface or a dark corner that changes what the camera records.
Four checks are worth doing at each proposed position:
- What the camera sees at night, not just in daylight.
- Whether a light, window or reflective surface sits inside the frame.
- Whether the view is blocked by a wall, sign, tree or parked vehicle.
- Whether the mounting height keeps the camera reachable for service without being easy to interfere with.
Camera placement also affects cable. A position that needs a long external run may be replaced by a nearby position with a shorter, tidier route, and tidy cabling was one of the stated needs in the KTA Sarawak Sdn Bhd office project in Kuching.
What an installation visit involves from survey to handover
An installation visit is a sequence of decisions, and each one constrains the next. The survey fixes the positions, the positions fix the cable routes, the routes fix the recorder location, and the recorder location fixes where the system is configured and demonstrated.
Remote viewing is set up at handover rather than left as an instruction sheet, because mobile viewing depends on the property's internet connection and the user's phone. If the connection is weak at the recorder position, that is better discovered during handover than after.
Handover is also where the recording setup is confirmed: which cameras record continuously, which record on movement, and how far back the stored footage reaches. Those answers are specific to the property and are not fixed by the camera count.
What is not covered by a general answer
Installation duration, cable length and warranty terms are not documented here, and no verified Malaysian regulatory or licensing requirement for CCTV installation is available in this evidence. Any statement on those points should come from the supplier's written terms rather than from a general guide.
Practical next step for a property in Sarawak or elsewhere in Malaysia
The useful starting point is a list of views, not a camera count. Write down every position that would need its own camera, note which ones are entry points, and bring that list to the survey. The survey then confirms which positions work, which need adjusting for lighting, and how many recorder channels the property should have.
Eyonic works across Sarawak from Kuching, and the same survey-to-handover process applies to homes, offices, shops and industrial sites. Share your location, property type and required system with Eyonic on WhatsApp at +60 11-5111 7959 for the next practical step.
